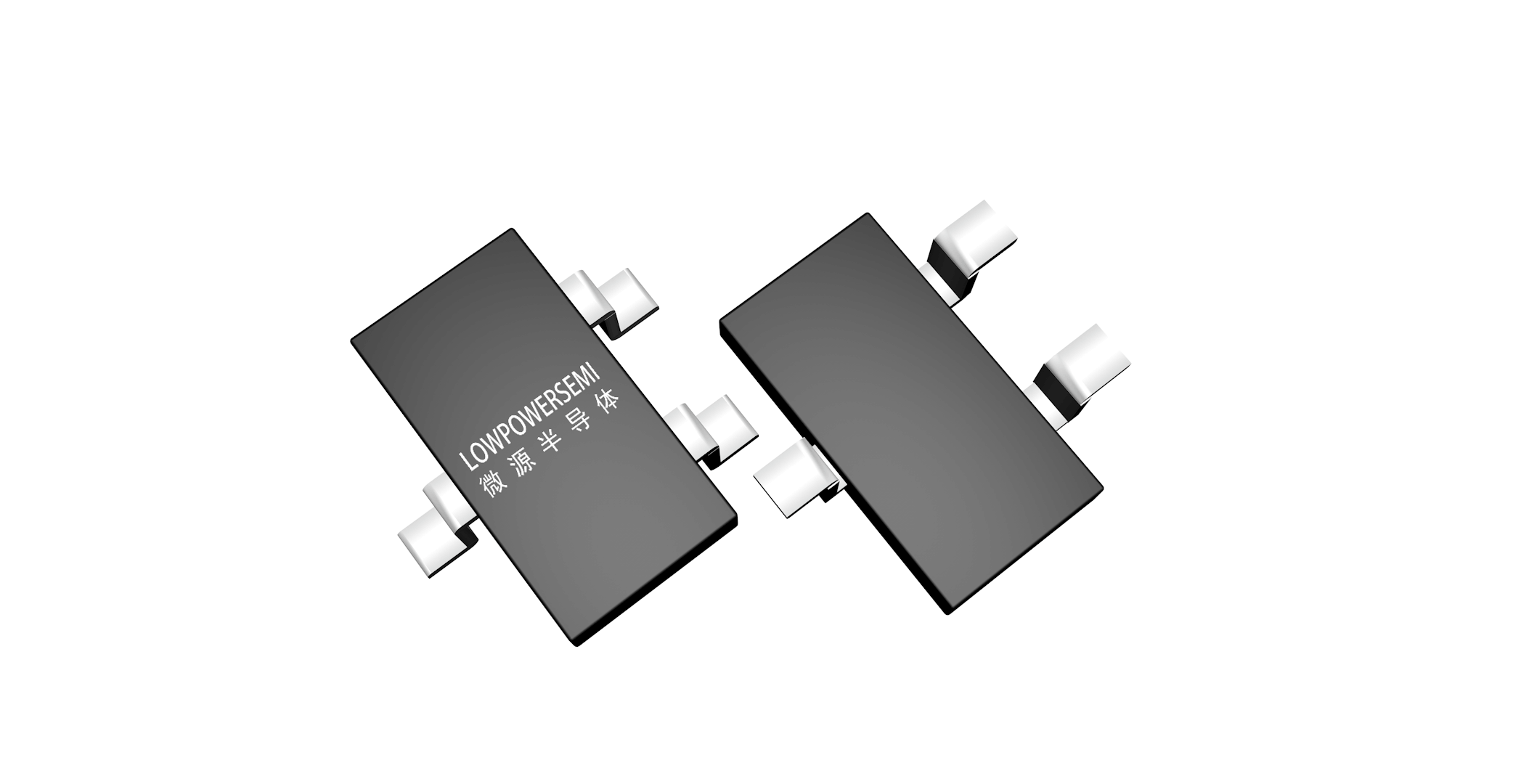

LP3818 is a series of high precision voltage detector with ultra low current consumption (5uA typ. at Vdd=3.0V). It can work at very low voltage, which makes it perfect for system reset.LP3818 is composed of high precision voltage reference, comparator, delay circuit, output driver and resistor array. Internally preset detect voltage has a low temperature drift and requires no external trimming.Two type of output, CMOS and N-channel open-drain are available.LP3818 is available in SOT-23 packages which is Pb free.
应用
◆ Power monitor for portable equipment ◆ PDA, DSC, Mobile phone,Notebook,MP3 ◆ CPU and Logic Circuit Reset ◆ Battery Checker ◆ Battery Back-up Circuit ◆ Power Failure Detector
数据参数
数据参数
输入电压(V)
0.9~6
电压检测(V)
3.3
复位状态
Active Low
延迟时间(mS)
200
输出类型
Push-Pull
静态电流(uA)
3
产品特征/功能
High Precision,Ultra low current consumption
封装
SOT23
特征
特征
◆ High-precision detection Voltage 2% ◆ Detection Voltage 0.9V~5.5V (in 0.1V steps) ◆ Precise hysteresis 4% typ. ◆ Operating Voltage range 2.5V~5.5V ◆ Ultra-low current consumption 5uA typ. (at VDD 3.0V) ◆ Two Output forms CMOS and N-channel open-drain
