| 产品型号 | 输入电压(V) | 输出电压(V) | 工作频率(Hz) | 限流值(mA) | 效率 (%) | 特点 | 封装 |
|---|---|---|---|---|---|---|---|
LP6281
|
13.5~19.8 | 7.4~18 | 500K/750K | 5000 | NA | I2C Programmable: AVDD,VGH,VGL,VSS, Buck (3A), 14CH P-Gamma, HAVDD,VCOM | TQFN-46 (4.5*6.5) |
|
LP6289
|
8.0~14 | 13.5~19.8 | 750K | 5000 | NA | I2C Programmable: AVDD,VGH,VGL,Buck (3.5A), 10CH P-Gamma, HAVDD,VCOM | TQFN-40 (5*5) |
| 产品型号 | 输入电压 (V) | 输出电压(V) | 工作频率(Hz) | 限流值(mA) | 效率 (%) | 特点 | 封装 |
|---|---|---|---|---|---|---|---|
|
LP3100S
|
2.5~4.8 | ±5.4-5.9 | 300K | ±60 | - | Low size,Large current,OTP | DFN-12(1.5*2.4) |
|
LP3100SA
|
2.5~4.8 | ±5.4~5.9 | 550K | ±90 | - | Low size,Large current,OTP | DFN-12(1.5*2.4) |
|
LP3100A
|
2.5~4.8 | ±5.5~5.9 | 550K | ±40 | - | Low size,Large current,OTP,OCP | DFN-12(1.5*2.4) |
|
LP3100
|
2.5~4.8 | ±5.5~5.9 | 300K | ±60 | - | Low size,Large current,OTP | DFN-12(1.5*2.4) |
|
LP3101
|
2.5~4.8 | ±5.5~5.9 | 300K | ±50 | - | Low size,Large current,OTP | DFN-12(1.5*3) |
|
LP3102
|
2.5~4.8 | ±5.5~5.9 | 1.2M | ±120 | - | Low size,Large current,OTP | DFN-10(3*3) |
|
LP6270
|
2.7~5.5 | ±4~6.2 | 1.2M | ±220 | 85 | Dual 220mA Output Power Supply for LCD Bias | WLCSP-15 |
|
LP62701
|
2.7~5.5 | ±4~6.5 | 1.2M | ±150 | 86 | Dual 150mA Output Power Supply for LCD Bias | WLCSP-15 |
|
LP6280S
|
2.7~5.5 | ±4~6 | 1M | ±80 | 88 | Dual 80mA Output Power Supply for LCD Bias | WLCSP-15 |
|
LP6280A
|
2.7~5.5 | ±4~6 | 1.2M | ±150 | 85 | Dual 150mA Output Power Supply for LCD Bias | WLCSP-15 |
|
LP6281
|
7.4~18 | 13.5~19.8 | 500K/750K | 5000 | NA | I2C Programmable: AVDD,VGH,VGL,VSS, Buck (3A), 14CH P-Gamma, HAVDD,VCOM | TQFN-46 (4.5*6.5) |
|
LP6282
|
2.5~5.5 | 6~12 | 1.5M | 2000 | 90 | AVDD,VGH,VGL,VCOM OP | TQFN-20 (3*3) |
|
LP6283
|
8.0~14 | Vin-18 | 500K/ 750K | 4000 | 90 | AVDD, VGH,VGL,VGHM, Buck, LDO, Vcom OP,Reset | TQFN-48 (7*7) |
|
LP6284
|
2.5~5.5 | Vin-16 | 640K/ 1.2M | 2000 | 92 | AVDD, VGH,VGHM, LDO, Vcom OP, Reset | TQFN-24 (4*4) |
|
LP6285
|
2.5~5.5 | 6.0~18 | 600K/ 1.2M | 2500 | 92 | AVDD, VGH,VGL, Vcom OP | TQFN-16 (3*3) |
|
LP6286
|
2.5~5.5 | 6.0~18 | 600K/ 1.2M | 3000 | 92 | AVDD, VGH,VGL,VGHM, Vcom OP, Reset | TQFN-24 (4*4) |
|
LP6288
|
8.0~14 | 13.5~19.8 | 750K | 4250 (Adj) | 90 | I2C Programmable:AVDD,VGH,VGL,VGHM, Buck1, Buck2, Buck3(HAVDD), Reset | TQFN-40 (6*6) |
|
LPQ65131
|
2.7~5.5 | ±15 | 1.38M | 2000 | 89 | VPOS/VNEG converter | QFN4x4-24 |
| 产品型号 | 输出电压(V) | 压摆率(V/uS) | 峰值电流(mA) | 通道数(CH) | 输出电流(mA) | 特点 | 封装 |
|---|---|---|---|---|---|---|---|
|
LP6291
|
6.0~18 | 40 | ±450 | 1 | ±100 | High Slew Rate | SOT23-6 |

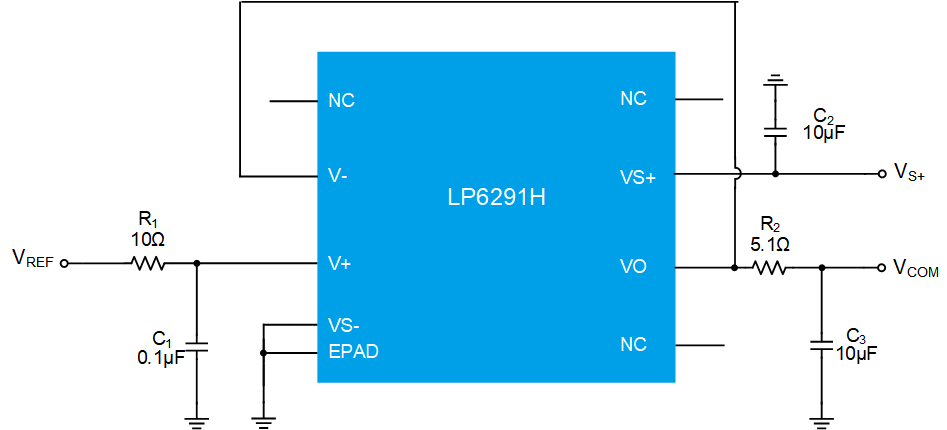

LP6291H
|
4.5~19.5 | 50 | ±1300 | 1 | ±450 | High Peak Source/Sink Current | DFN-8（3*3)/SOT23-5 |
|
LP6292
|
6.0~18 | 40 | ±450 | 2 | ±100 | High Slew Rate | DFN-8（3*3) |
|
LP6294
|
4.5~18 | 40 | ±450 | 4 | ± 100 | High Slew Rate | ETSSOP-14 |
| 产品型号 | 输入电压(V) | 通道数(CH) | CLK通道 | 高电平电压(V) | 低电平电压(V) | 输出阻抗(Ω) | 工作频率(Hz) | 特点 | 封装 |
|---|---|---|---|---|---|---|---|---|---|
|
LP6275
|
-18~40 | 14 | 4/6/8 | 40 | -18 | 15 | 500K | Programmable CLK phase output 1-line/2-line mode select | TQFN-32 (4*4) |
|
LP6295
|
-18~40 | 14 | 4/6/8 | 40 | -18 | 15 | 500K | Programmable CLK phase output 1-line/2-line mode select | TQFN-28 (4*5) |
|
LP6296A
|
-18~40 | 16 | 4/6/8/10 | 40 | -18 | 9 | 500K | Programmable CLK phase output 1-line/2-line mode select | TQFN-32 (4*4) |
|
LP6296B
|
-18~40 | 16 | 4/6/8/10 | 40 | -18 | 9 | 500K | Programmable CLK phase output Dual VGH Power Supply 1-line/2-line mode select | TQFN-32 (4*4) |
|
LP6296C
|
-18~40 | 16 | 4/6/8/10 | 40 | -18 | 9 | 500K | Programmable CLK phase output Dual VGH Power Supply 1-line/2-line mode select | TQFN-32 (4*4) |
|
LP6297A
|
-20~40 | 10 | 6 | 40 | -20 | 11 | 500K | 1-to-1 input/output control | TQFN-28 (4*4) |
|
LP6297B
|
-20~40 | 10 | 6 | 40 | -20 | 11 | 500K | TCON MODE Select 1-to-1 or 2-to-6 input/output control | TQFN-32 (4*4) |
| 产品型号 | 电压参数（V） | 压摆率(V/uS) | 输出短路电流(mA) | 电源抑制比(dB) | 特点 | 封装 |
|---|---|---|---|---|---|---|
|
LP6298
|
6.5~18 | 8 | ±70 | - | 14+1 | TQFN-24 (4*4) |
|
LP6299
|
6.5~18 | 10 | ±100 | - | 14+1 | TQFN-32 (5*5) |
| 产品型号 | 输入电压 (V) | 最大输出电压(V) | 工作模式 | LED通道数 | 驱动LED数量(pcs) | 开关电流(A) | 开关频率 (Hz) | FB电压(mV) | 亮度调节 | 过压保护(V) | 产品特征/功能 | 应用 | 封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3301
|
2.7-24 | 24 | Boost | - | - | 3 | 1M | 1230 | - | - | Low size,Small EMI | Bias | SOT23-5 |
|
LP3302
|
2.7~6 | 29 | Boost | 1 | 3S8P | 1.1 | 1M | 250 | PWM | 29 | OVP,OTP,Constant current,Low size | Backlight | SOT23-6 |
|
LP3307
|
2.2~6 | 29 | Boost | 1 | 3S8P | 1.1 | 1.1M | 250 | PWM | 29 | OVP,OTP,Constant current,Low size | Backlight | SOT23-6 |
|
LP3310
|
2.7~24 | 28 | Boost | 1 | 3S24P | 4 | 1M | 250 | PWM | 28 | OVP,OTP,Constant current,Low size,1%dimming | Backlight | SOT23-6/DFN-6(2*2) |
|
LP3315
|
2.7~5.5 | 30 | Boost | - | - | 1 | 1.2M | 1250 | PWM | - | Low size,Small EMI | Bias | SOT23-5 |
|
LP3316
|
2.7~5.5 | 30 | Boost | - | - | 1.4 | 1.2M | 1230 | PWM | - | Low size,Small EMI | Bias | SOT23-5 |
|
LP3317
|
2.2~5.5 | 30 | Boost | - | - | 1.5 | 1.2M | 1230 | PWM | - | Low size,Small EMI | Bias | SOT23-5 |
|
LP3318
|
2.7~6 | 36 | Boost | - | - | 1.5 | 1M | 1230 | PWM | - | Low size,Small EMI | Bias | SOT23-5 |
|
LP3320
|
2.5~5.5 | 37 | Boost | 1 | 3S12P | 1.5 | 1M | 250 | PWM | 37 | OVP,OTP,Constant current,Low size | Backlight | SOT23-6/DFN-6(2*2) |
|
LP3321
|
2.5~5.5 | 37 | Boost | 1 | 3S12P | 1.5 | 1M | 200 | PWM | 37 | OVP,OTP,Constant current,Low size | Backlight | SOT23-6/DFN-6(2*2) |
|
LP3350
|
8~28 | Adj. | Boost | 1 | Upon Ext.MOSFET | Ext | 200K | 300 | PWM | Adj | OVP,OTP,Constant current,Large current | Backlight | SOP8 |
|
LP3351
|
8~28 | Adj. | Boost | 1 | Upon Ext.MOSFET | Ext | 200K | 210 | PWM | Adj | OVP,OTP,Constant current | Backlight | SOP8 |
|
LP3352
|
2.7~24 | 39 | Boost | 6 | 6S13P | 2.5 | 1.25M | 600 | PWM | 39 | 6CH, OCP,OVP,OTP | Backlight | QFN3X3 |
|
LP3353
|
7~26 | Adj. | Boost | 1 | Upon Ext.MOSFET | Ext | 120K | 400 | PWM | Adj | OVP,OTP,Constant current,Large current | Backlight | SOP8 |
|
LP3354
|
7~24 | Adj. | Boost | 1 | Upon Ext.MOSFET | Ext | 120K | 400 | PWM | Adj | OVP,OTP,Constant current,Large current，I2C | Backlight | SOP10/DFN-10(3*3) |
|
LP3382
|
2.2~5.5 | 29 | Boost | 1 | 3S16P | 2 | 1M | 250 | PWM | 29 | OVP,OTP,Constant current,Low size | Backlight | SOT23-6 |
