High-Side Load Switch with Over-Current Protection
规格书下载
转存邮件
LPW5204
转存邮件
概述
The LPW5204 is a load switch which provide full protection to systems and loads which may encounter large current conditions. The device contains a 70mΩ current-limited P-channel MOSFET which can operate over an input voltage range from 2.4V to 6V. The current limit is fixed or could beset table using an external resistor. When the current reaches the threshold, the device will limit the current to constant value to prohibit excessive currents from causing damage. Internally, current is prevented from flowing when the MOSFET is off and the output voltage is higher than the input voltage. Switch is controlled by an active-high logic pin. Thermal shutdown protection is integrated which shuts off the switch to prevent damage to the part when a continuous over-current condition causes excessive heating.These parts are available in a space-saving 6 pin SOT23 package or DFN-6 package.

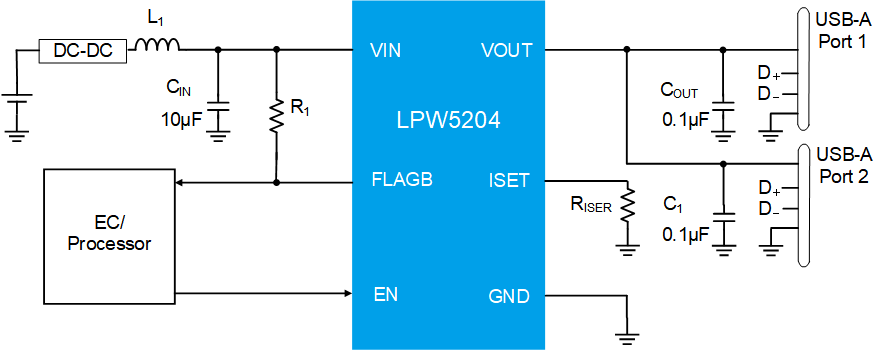

应用
◆Notebook and PC ◆ Cell phone and PDAs ◆USB or other peripheral ports ◆Camera
数据参数
数据参数
输入电压 (V)
2.4~6
内阻(mΩ)
70
静态电流(A)
Adj.
输出电流(mA)
Adj.
FLAG指示
Y
快速放电功能
Y
通道数量
1
产品特征/功能
Low Rdson,SS,OTP,Flag report,Output Discharge
封装
SOT23-6/DFN-6(2*2)
特征
特征
◆2.4V to 6V input voltage range ◆Low on-state resistance to 70mΩ ◆30μA low current consumption ◆Ultra-low shutdown current (<100nA) ◆Adjustable current limit ◆ Under-voltage lockout ◆ Blocking reverse current ◆Thermal shutdown protection ◆ Fast current limit response ◆ESD Protection: - Human Body Model: 4kV - Charged Device Model: 0.5kV ◆Package in SOT23-6 or DFN-6
