LP3808 is a series of high precision voltage detector with ultra low current consumption(500nA typ. at Vdd=3.0V). It can work at very low voltage, which makes it perfect for system reset. LP3808 is composed of high precision voltage reference, comparator, output driver and resistor array. Internally preset detect voltage has a low temperature drift and requires no external trimming.Two type of output, N-channel open-drain are available.LP3808 is available in SOT-89-3,SOT23-3，SOT23-5 packages which is Pb -free.
应用
◆ Power monitor for portable equipment such as ◆ PDA, DSC, Mobile phone,Notebook,MP3 ◆ CPU and Logic Circuit Reset ◆ Battery Checker ◆ Battery Back-up Circuit ◆ Power Failure Detector
数据参数
数据参数
输入电压(V)
0.9~6
电压检测(V)
1.1
复位状态
Active Low
延迟时间(mS)
-
输出类型
Open-Drain
静态电流(uA)
3
产品特征/功能
High Precision,Ultra low current consumption
封装
SOT23
特征
特征

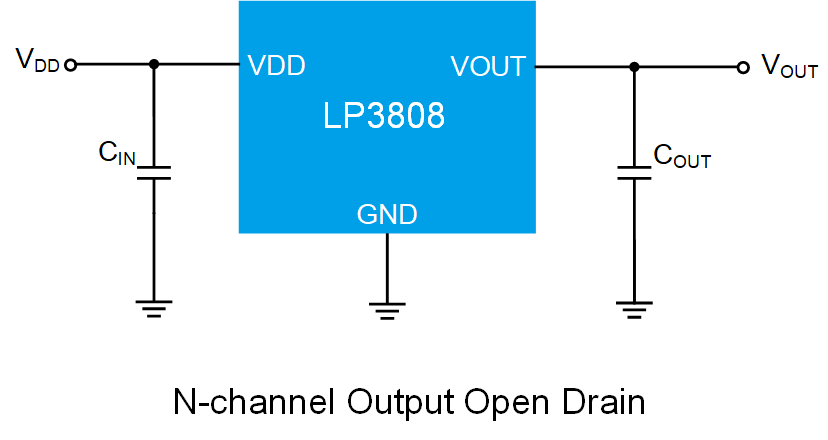

◆ High-precision detection Voltage 2% ◆ Detection Voltage 0.9V~6.0V (in 0.1V steps) ◆ Precise hysteresis 4% typ. ◆ Operating Voltage range 0.7V~10V ◆ Ultra-low current consumption 500nA typ. (at VDD 3.0V) ◆ Two Output forms N-channel open-drain
