300mA,Ultra-low noise, Small Package Ultra-Fast CMOS LDO Regulator
规格书下载
转存邮件
LP3984
转存邮件
概述
The LP3984 is designed for portable RF and wireless applications with demanding performance and space requirements. The LP3984 performance is optimized for battery-powered systems to deliver ultra-low noise and low quiescent current. The LP3984 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The LP3984consumes less than 1µA in shutdown mode. The other features include ultra-low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. It is available in the 5-lead of SOT23-5 packages.
应用
◆Portable Media Players/MP3 players ◆Cellular and Smart mobile phone ◆LCD ◆DSC Sensor ◆Wireless Card
数据参数
数据参数
输出电流(mA)
300
输出电压(V)
1.2/1.5/1.8/2.5/2.8/3.0/3.3/3.6/Adj.
输入电压(V)
2.0-6.0
电源抑制比(dB)
-70
精度(%)
2
导通压差(mV/mA)
280 @ 400
静态电流(uA)
50
特点
Shutdown,High PSRR
封装

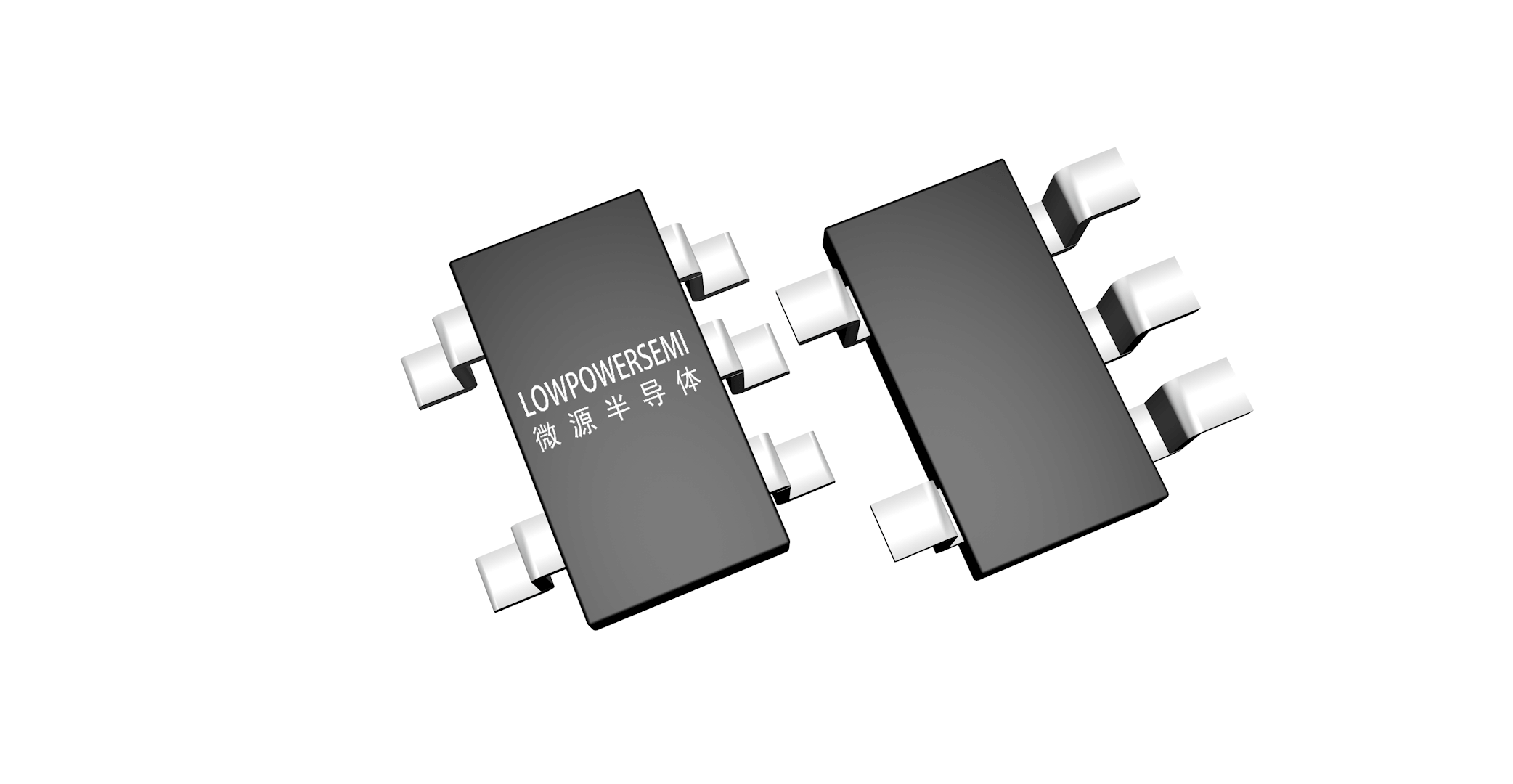

SOT23-5
特征
特征
◆Ultra-Low-Noise for RF Application ◆2.5V- 5.5V Input Voltage Range ◆Low Dropout : 300mV @ 300mA ◆300mA Output Current ◆High PSRR:-68dB at 1KHz ◆1uA Standby Current When Shutdown ◆Available in SOT23-5 Package ◆TTL-Logic-Controlled Shutdown Input ◆Ultra-Fast Response in Line/Load transient ◆Current Limiting and Thermal Shutdown ◆Protection
