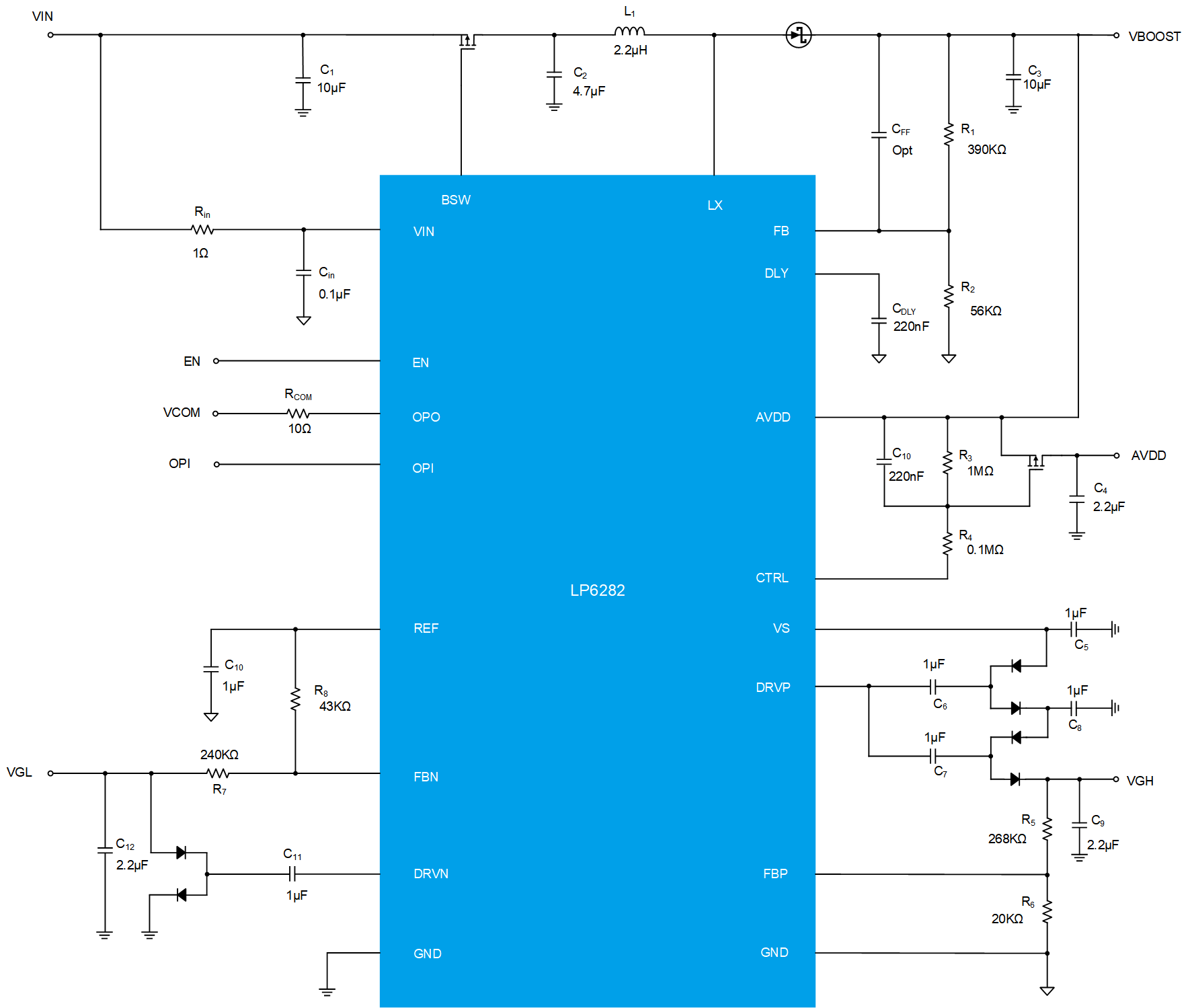

The LP6282 includes a high-efficiency boost regulator, a VCOM buffer, and dual charge pump controller for active matrix TFT LCDs.
The converter is a high switching frequency current-mode regulator with an integrated N-Channel MOSFET that allows the use of small inductors and ceramic capacitors.
The charge pump controller provides regulated TFT Gate-On voltage. The regulation of the charge pump is generated by the internal comparator that senses the output voltage and compares it with an internal reference.
The Unity-Gain buffer can drive the VCOM voltage, that features high short-circuit current, fast slew rate and rail-to-rail inputs and outputs.Other features include under-voltage protection, short circuit protection, thermal shutdown protection and under-voltage lockout (UVLO). The LP6282 is available in a space saving QFN-20 (0.4mm pitch) package.
