LP28058F is a complete single-cell li-ion battery charger with reverse polarity protection for the battery. It adopts constant current / constant voltage linear control. The small number of external components required makes it ideal for portable applications. This chip is suitable for USB power and adapter power work.Due to the use of an internal PMOSFET architecture and an anti-reverse charge circuit, no external sense resistors and isolation diodes are required. Thermal feedback can automatically adjust the charging current to limit the chip temperature under high power operation or high ambient temperature conditions. The charge current can be programmed with a resistor.When the battery voltage reaches VFLOAT (4.2V Typ.), the charging current will drop to 1/10 of the set value，the status indicator status is reversed, but the chip will still charges the battery until the current decreases to 0A.When the input voltage (AC adapter or USB power) is removed, the chip will automatically enter a low current state, and the battery leakage current is below 3uA. Other features of the LP28058F include a charge current monitor, under-voltage lockout, automatic recharge, and two status pins to indicate the end of charging and the input voltage.

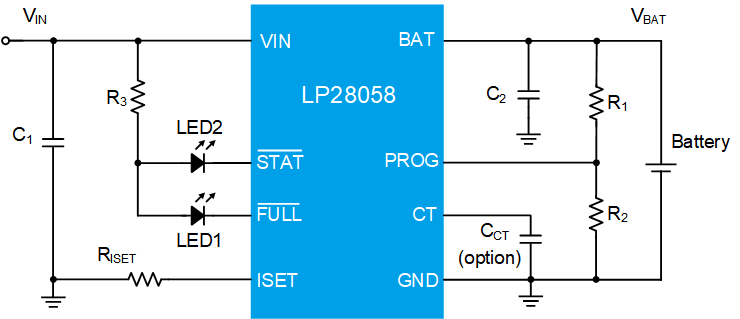

应用
◆ Mobile multimedia devices, MP3 ◆ Mobile phone, smartphone ◆ PDA, DSC ◆ Bluetooth application
数据参数
数据参数
最大充电电流(mA)
1000
工作电压(V)
4.5-28
过压保护(V)
7
电池电压(V)
Adj.
温度检测
-
使能控制
-
充电状态指示
Y
充满状态指示
Y
PG
-
充电类型
Linear
电池节数
1
产品特征/功能
CTC,1A Large current,Adjustable VBAT,OTP,OCP
封装
ESOP8/SOT23-6
特征
特征
◆ Preset 4.2V ± 1% charging voltage; ◆ Programmable charging voltage, up to the input voltage; ◆ Programmable charging current, up to 1A; ◆ Maximum input voltage: 7V; ◆ Support charging 0V battery; ◆ Standby current is less than 1uA; ◆ Short circuit protection ◆ Battery anti-backflow function; ◆ Reverse polarity protection for battery; ◆ Intelligent temperature control technology; ◆ Soft-start limits inrush current; ◆ Charges directly from the USB port; ◆ Automatic recharge ◆ Support 1 light mode and 2 light mode; ◆ Highly integrated with few external components
