The LP5300 is an Over-Voltage-Protection (OVP) and Over-Current-Protection (OCP) device. The device will switch off internal MOSFET to disconnect VIN to VOUT to protect load when any of input voltage, input current over the threshold. The Over temperature protection (OTP) function monitors chip temperature to protect the device.The LP5300 is available in SOT-23-6 and SOT89 package. Standard products are Pb-free and Halogen-free.

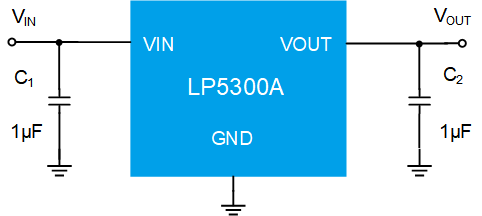

应用
◆ GPS ◆ PMP ◆ PAD ◆ MID ◆ Digital cameras, Digital Videos
数据参数
数据参数
输入电压(V)
3.5~36
内阻(mΩ)
130
静态电流(uA)
110
限流可调
-
输出电流(A)
2.1
过压保护(V)
6.1/5.8
特点
Low Rdson,OCP,OVP,OTP
封装
SOT23-6
特征
特征
◆ Input Voltage Range: 3.5V to 36V ◆ Typical Output Power on Time: 9ms ◆ OVP Threshold: 6.1V/5.8V ◆ OVP Threshold Time Less Than 1μs ◆ Over Current Protection: 2.1A(MIN) ◆ Low RDS(ON) Internal Switches:130mΩ @ 5V /1A ◆ Output Discharge ◆ Thermal Fault Protection ◆ SOT23-6/SOT89 Package ◆ RoHS Compliant and 100% Lead (Pb)-Free
