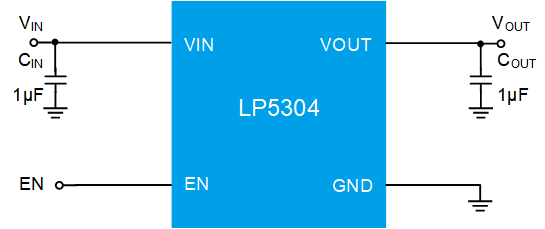

The LP5304 is an Over-Voltage-Protection (OVP) device. The device will switch off internal MOSFET to disconnect IN to OUT to protect load when any of input voltage over the threshold. The Over temperature protection (OTP) function monitors chip temperature to protect the device.The LP5304 is available in DFN-8 package. Standard products are Pb-free and Halogen-free.
应用
◆GPS ◆PMP ◆PAD ◆MID ◆Digital cameras, Digital Videos
数据参数
数据参数
输入电压(V)
3.3~26
内阻(mΩ)
85
静态电流(uA)
250
限流可调
-
输出电流(A)
3
过压保护(V)
6.1
特点
Low Rdson,Large current,OVP,OTP
封装
DFN-8(2*2)
特征
特征
◆Input Voltage Range: 3.5V to 36V ◆Typical Output Power on Time: 9mS ◆OVP Threshold: 6.1V/5.8V ◆OVP Threshold Time Less Than 1uS ◆Output current:5A ◆Low R(DSON) Internal Switches:30mΩ @ 5V ◆Output Discharge ◆Thermal Fault Protection ◆DFN-8 3*3mm Package ◆RoHS Compliant and 100% Lead (Pb)-Free
