8-Channel Level-Shift with Charge Sharing for GOP Panel
规格书下载
转存邮件
LP6297A
转存邮件
概述

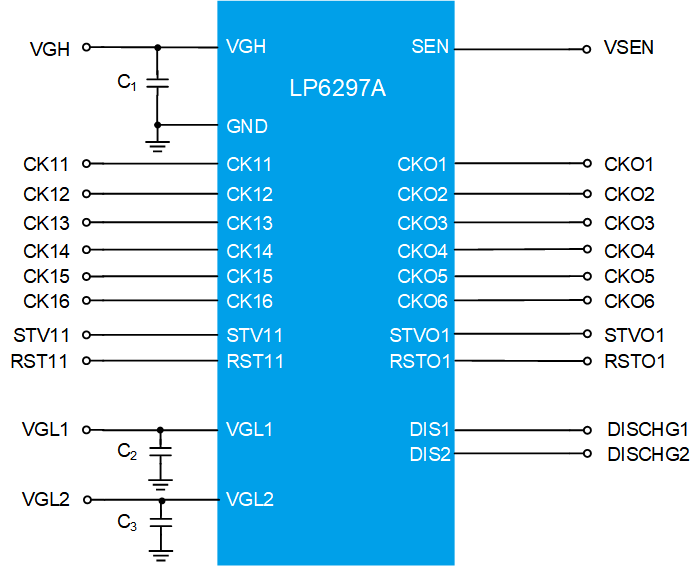

The LP6297A is an 8-CH high voltage level shifter for TV and monitor LCD applications. It converts logic level signals from Timing Controller (T-CON) to high level signals used by the LCD panel.The outputs are switching from VGL to VGH, with capacitive loads up to 5nF. The LP6297A also generates reset function. Once XAO reaches reset level, DIS1 and DIS2 will be pulled to VGH.Other features include thermal shutdown protection and under-voltage lockout (UVLO). The LP6297A is available in QFN-28 (0.4mm pitch) package.
应用
◆ TFT for NB Using GOP/IPS Technology ◆ TFT for Monitors Using GOP/IPS Technology ◆ TFT for TV Using GOP/IPS Technology
数据参数
数据参数
输入电压(V)
-20~40
通道数(CH)
10
CLK通道
6
高电平电压(V)
40
低电平电压(V)
-20
输出阻抗(Ω)
11
工作频率(Hz)
500K
特点
1-to-1 input/output control
封装
TQFN-28 (4*4)
特征
特征
◆ -20V to 40V High Output Level ◆ High Output Slew Rate to Drive Up to 5nF Load ◆ Over Temperature Protection ◆ Available in QFN-28 (4×4mm) ◆ RoHS Compliant and Halogen Free ◆ Pb-Free Package
